Stellar

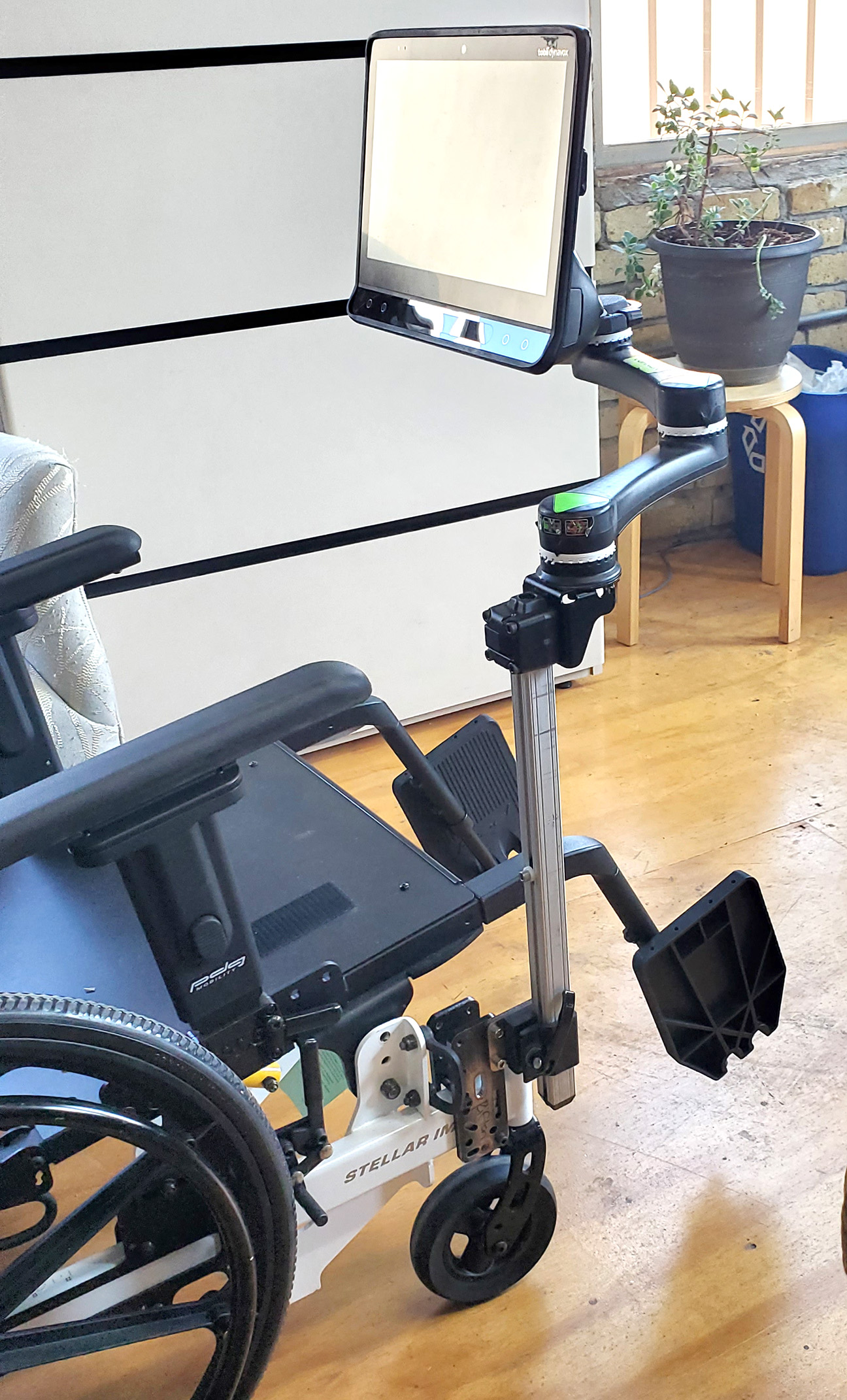

PEK12_AP4  mounted to frame
Holes in frame for initial attachment point
attach AP4 to holes in frame
An L-Angle Extension is shown attached to offset/reposition the Wheelchair Bracket.
Spacer placement, as needed.
Attach one Adapter Plate to the other, using the bolts, spacers and lock nuts.
PDG Stellar has rectangular tubing. The two approaches are to Sandwich the rectangular tube with two Adapter Plates, or to drill two holes into the rectangular tube and attach an Adapter Plate with bolts and lock nuts.
Locate the best assortment of holes and slots to secure the Adapter Plates.
Sandwich plates around frame
Two WC_AP5 plates and a WB2
Two Adapter Plates are used to sandwich the rectangular tube. Long bolts and nuts are used to secure the assembly. Spacers are needed to locate the plates.

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Attach the WC-AP4 to the two holes in the frame.   Attach the PEK-12 to the AP4 adapter plate

Installation support:

Suggested extra parts

Other hardware:

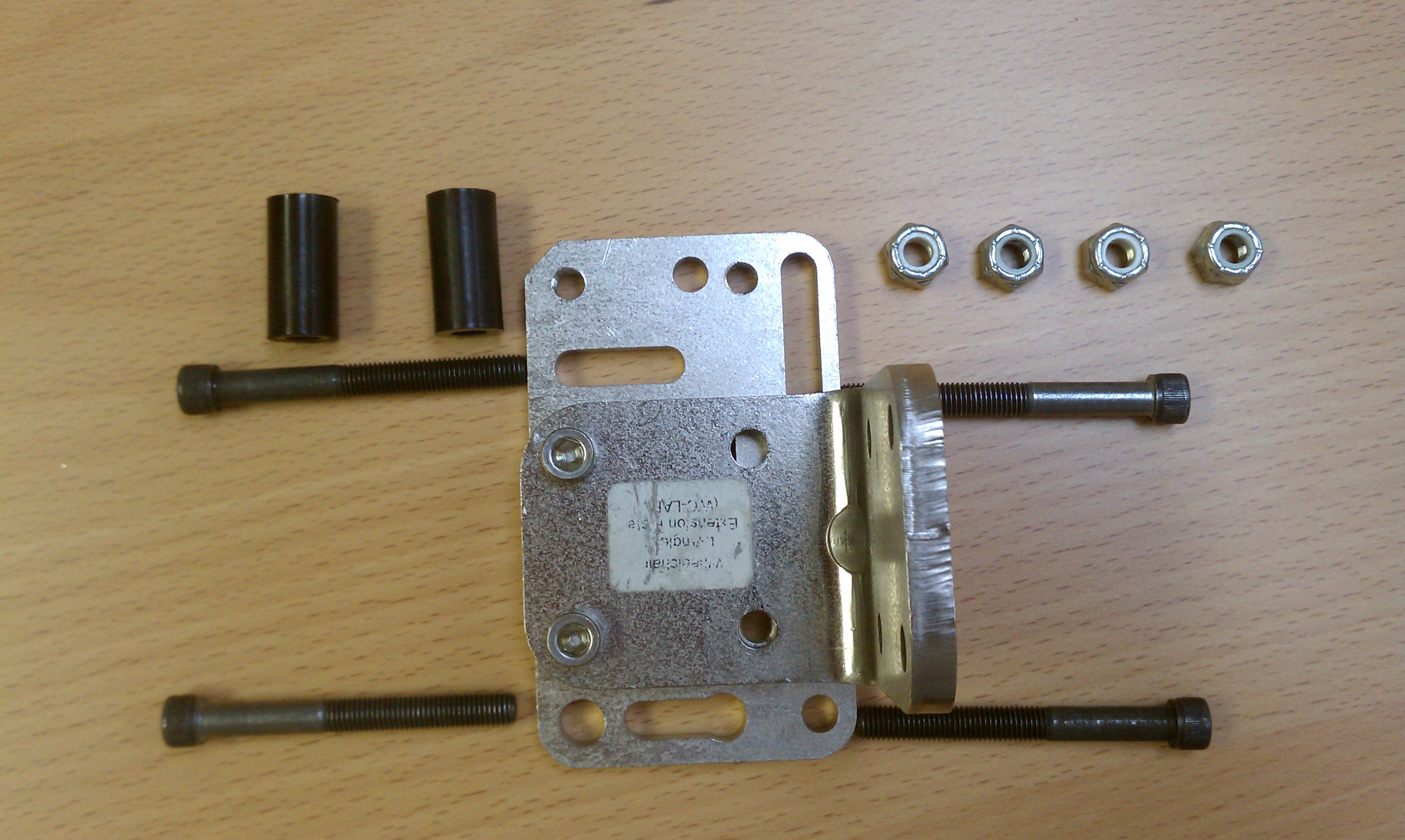

(4) 1/4" bolts x 2"; lock nuts for the bolts
(4) Spacers-- approx. 1/2" OD, 1/4" ID, x 1" long

How to mount:

Drill through the tube. Before drilling, be sure the bolts will not interfere with any telescoping tubes. Ensure the two 1/4" holes will align with holes on the AP4.

Attach with two 1/4" bolts through a hole and slot, Secure with lock nuts. Attach other hardware as needed.

Installation support:
