Offset options

Why use offsets?

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

L-Angle Extenders (WC-LAE) as Offsets

L-Angle Extenders (WC-LAE) as Offsets

L-Angle Extensions can be used singly, or in pairs to offset Wheelchair Brackets.
Used in a pair, it can extend mounting by up to 7"

Adapter Plates as Offsets

Adapter Plates as Offsets



Angle Adjustment Plate (WC-AAP) for Angle Offsets

Angle Adjustment Plate (WC-AAP) for Angle Offsets

Angle Adjustment Plates are used with any wheelchair mounting component, to allow the other offset components or wheelchair brackets to be mounted as vertical as possible.





Offset examples

Offset Use: Avoid armrests, and laptray. Eyegaze device.
Offset Use: Avoid armrests, and laptray. Direct select.
Offset Use: Avoid armrest.
Offset Use: Avoid brake lever and footrest attachment.
Offset Use: Avoid brake lever and footrest attachment.

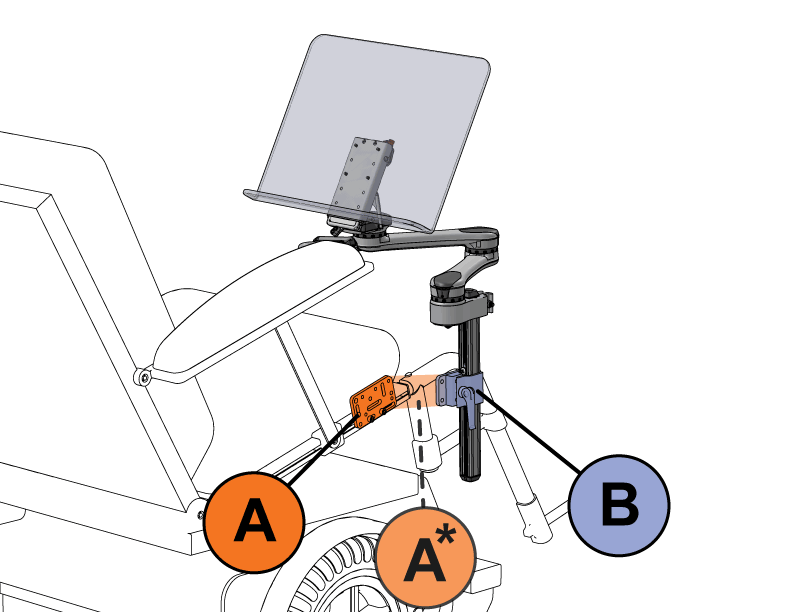

Offset diagram

Offset plates
