ZM-310

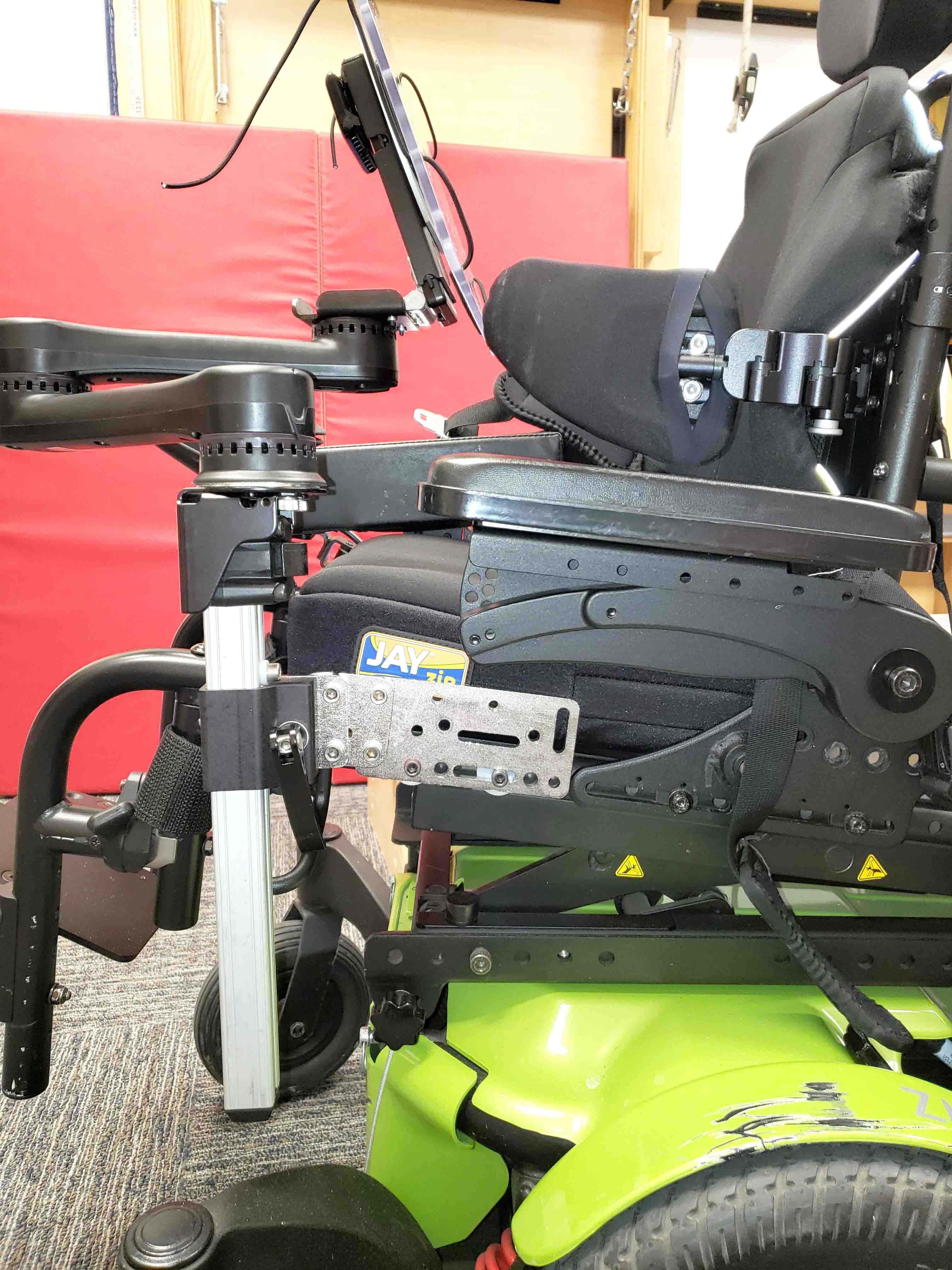

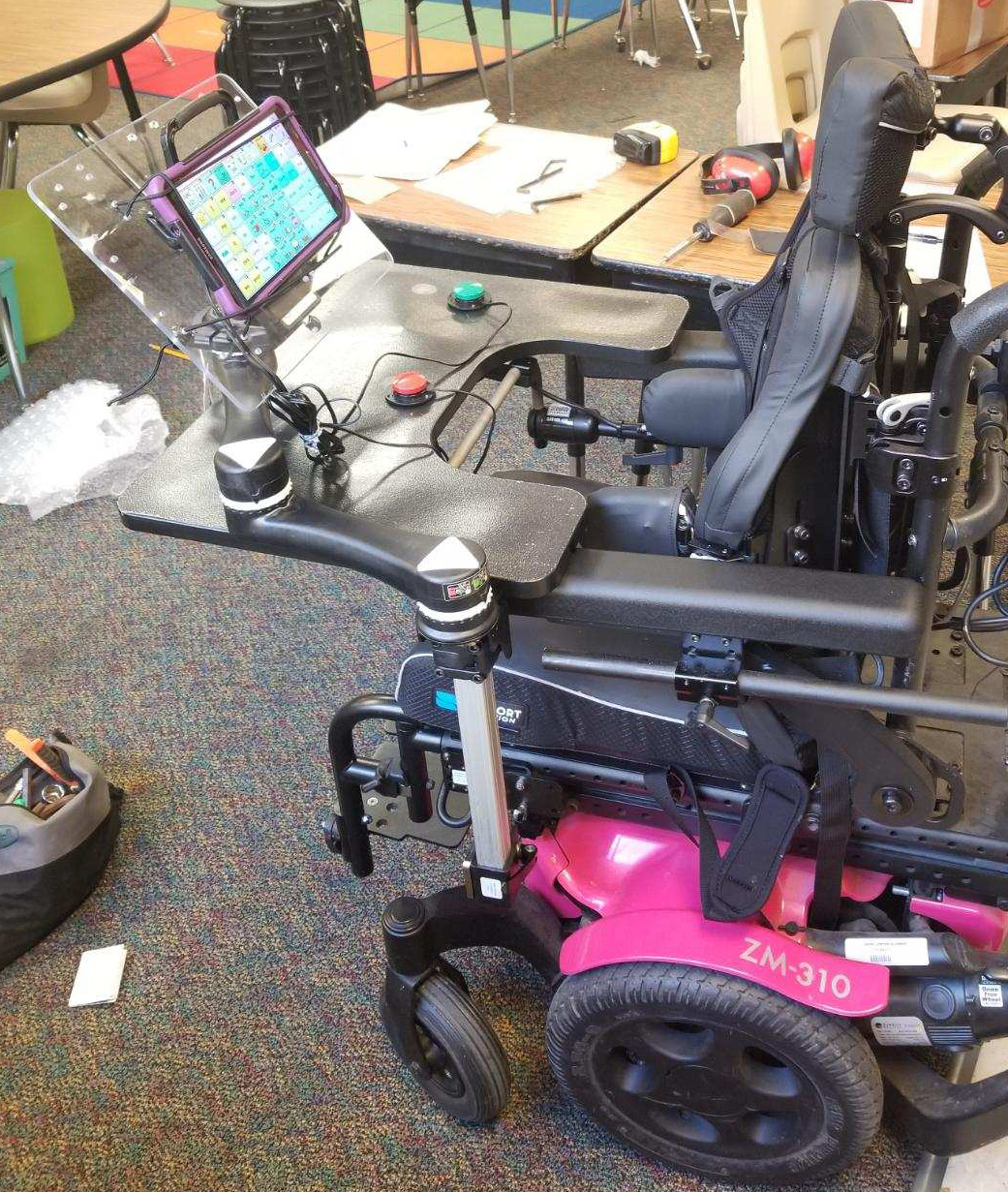

Dual Arm Mount installed
Side view showing round tubing with holes
coved spacers_AP2_AAP_WB2
1" bridge clamps on the horizontal and vertical tubing
Attachment hardware ZM 310 and another attachment option

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Attach adapter plate to horizontal tubing with the coved spacers and bolts. ***You may have to "chase" out the holes to be slightly larger.****   Another option is to attach to the front via 1" bridge clamps where the horizontal tube connects to the vertical tubing on the foot hanger.

Suggested extra parts

Manufacturer parts:
