Rogue/Tsunami

Ki Mobility Roque

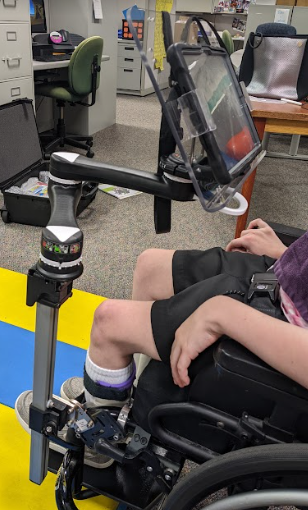

Pre-plan the placement of all components. In the end, you want the post vertical, so you may need the Angle Adjustment plate. As stated earlier, do not attach both clamps to the horizontal section.
The Ki Rogue/Tsunami tubing is 1 3/8" diameter. Specific collar clamps are required. The clamps cannot both be attached to horizontal tube sections, or you are at risk for rotation of the system.
Ki Mobility Rogue

Offset options

Offsets attach to the wheelchair attachment hardware, and are used to:

  • Get around obstacles such as trays, brakes, footrests and armrests
  • Position the Wheelchair Bracket so the post is in the optimal position (post can be inserted and removed, brakes are unobstructed, footrests removed, accommodate the tray, etc)
  • Adjust the angle of the hardware and/or bracket to make sure the post is vertical

These plates can all be used to offset. To figure out which offset plate will work for you, see our Offset Guide.

How to mount:

Use collar clamps and an Adapter Plate to create a bridge clamp.  The Ki Rogue is 1- 3/8" tubing (Collar Clamp Size 1.375). Use an Angle Adjustment Plate to ensure the post is vertical. An L-Angle Extension plate may be necessary for optimal wheelchair bracket positioning.

Recommended mounting hardware:

Collar Clamp (WC-COLLAR) (WC-COLLAR-75, WC-COLLAR-875, WC-COLLAR-1, WC-COLLAR-1125, WC-COLLAR-30, WC-COLLAR-1250, WC-COLLAR-1375, WC-COLLAR-150) (2)
Angle Adjustment Plate (WC-AAP)
Adapter Plate 4 (WC-AP4)
Solid Wheelchair Bracket (WB2)

Installation support:

Round tubes - Bridge Clamps, Round Clamps, and Collar Clamps
