Prepare the Device or Tray

OVERVIEW | STEP 1 | STEP 2 | STEP 3 | STEP 4 | STEP 5 | STEP 6 | STEP 7 | STEP 8

Follow instructions for your specific Device or Tray:

1. Attach to the Device Plate to the Device.
2. Attach the Quick Release Plate to the Device Plate or Tray.

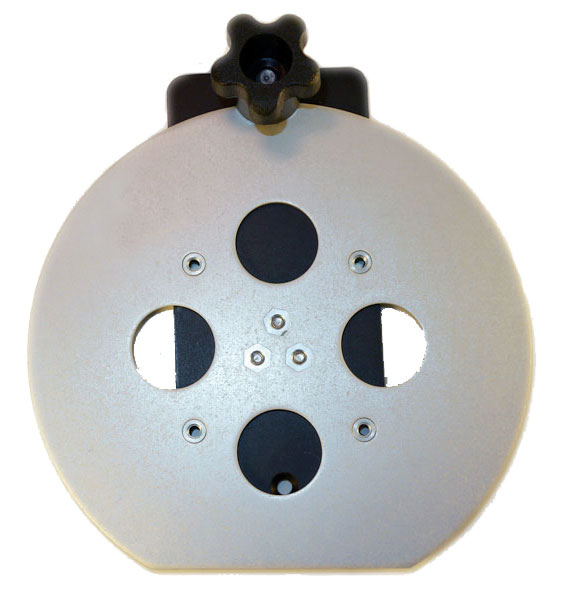

Rotator

Consider a Universal Rotator if you need to rotate the device to accommodate a person’s head tilt, change from portrait to landscape or adjust a system that isn’t exactly horizontal as mounted.

 The Rotator is attached between the device plate or tray and the Quick Release Plate. Use the knob to unlock and lock the Rotator, adjusting the angle as needed.

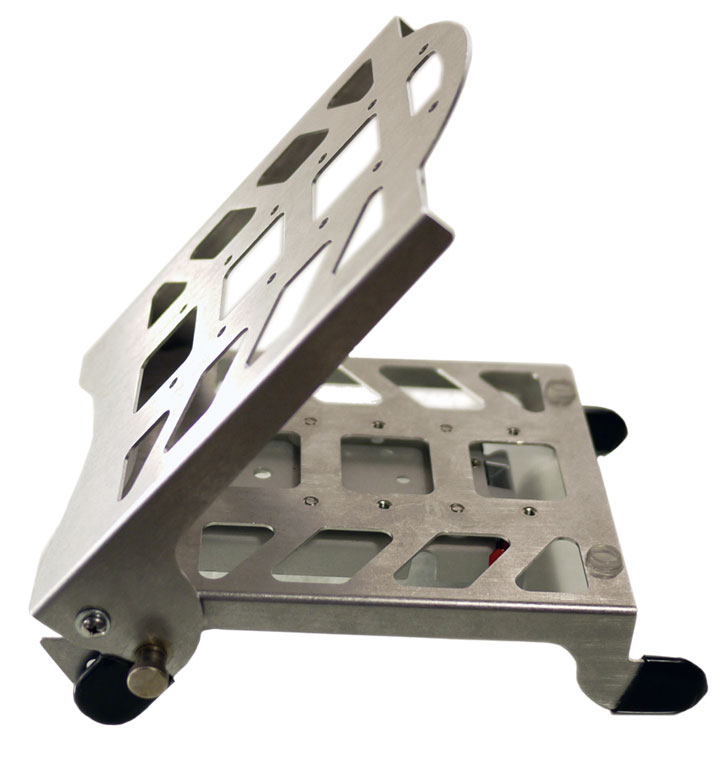

Stand 90

Consider a Stand+90 if you need a device to face downward. The locking Mount’n Mover has 12 degrees of downward positioning built into it; the Easy Mover allows a full range, provided it does not run into the mounting arm.

Detach Quick Release Plate

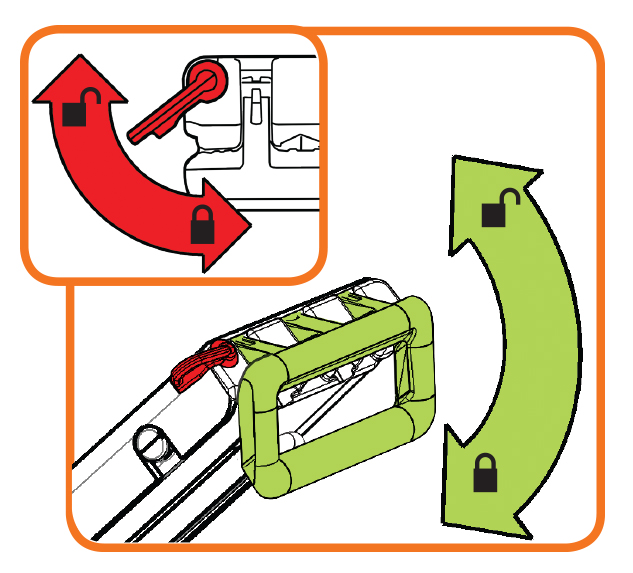

1. Release lock (in red below) by rotating clockwise.
2. Unlock by pulling out and up on handle (in green below)

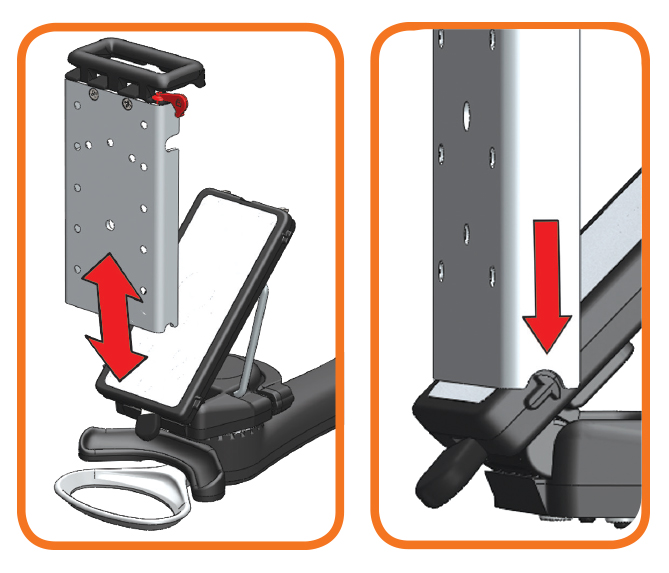

3. Lift off by pulling forward and up (second image, below)

Reverse these steps to reattach to device plate.
